🖨️ Teneth TN48CCD – 48 Inch Cutting Plotter with CCD Camera
Professional-grade plotter designed for sign-making, sticker cutting, and large-format design.
✅ Key Specifications:
Cutting width: 1250mm (48 inch)
Max feed width: 1360mm
Speed: up to 1000mm/s
Cutting force: 10–1000g (digital adjustment)
Precision: 0.025mm mechanical, <0.025mm repeatability

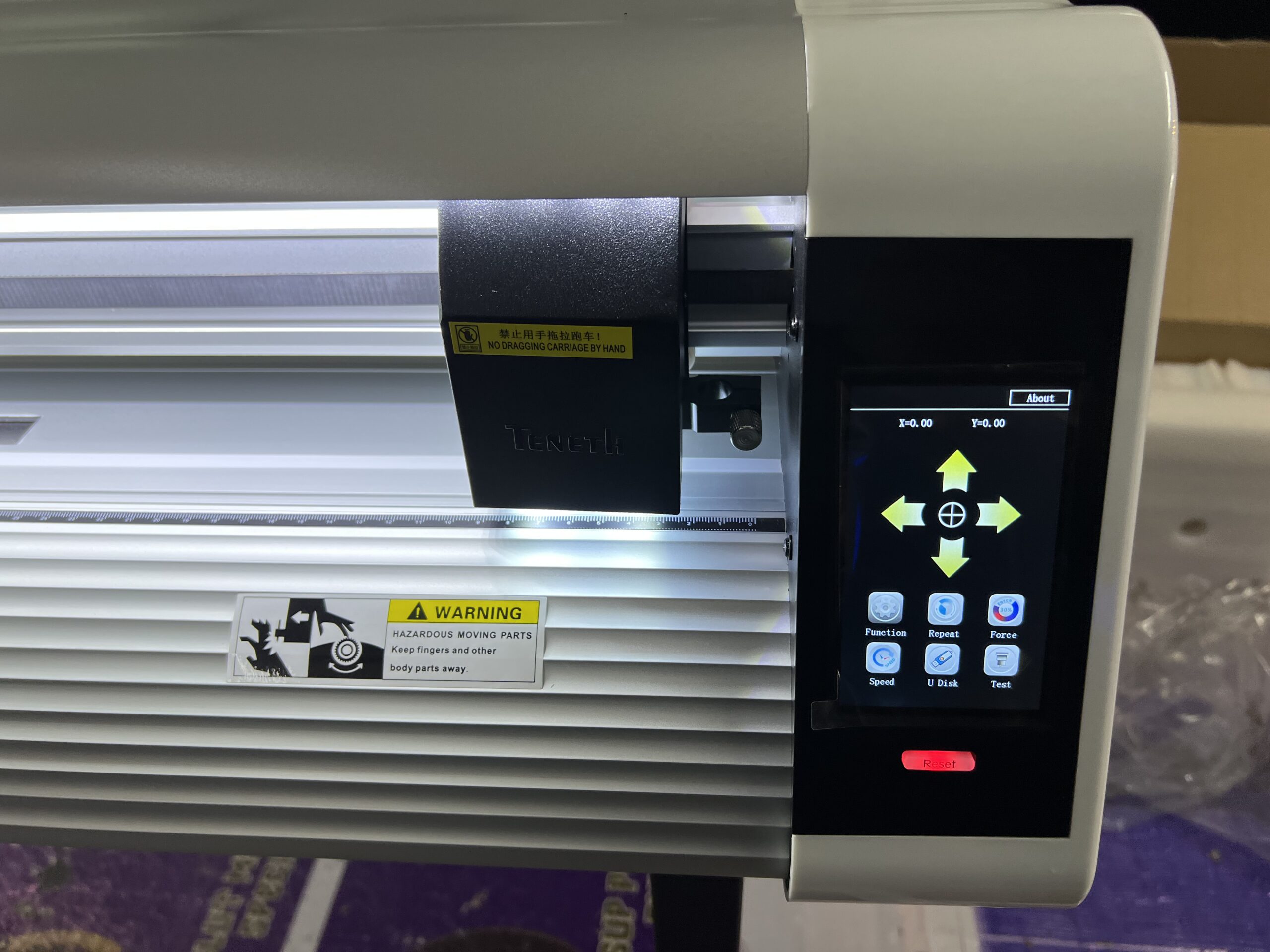

Control: Full touch screen panel
Motor: High-speed, big power step motor
Memory: 128MB high-speed cache

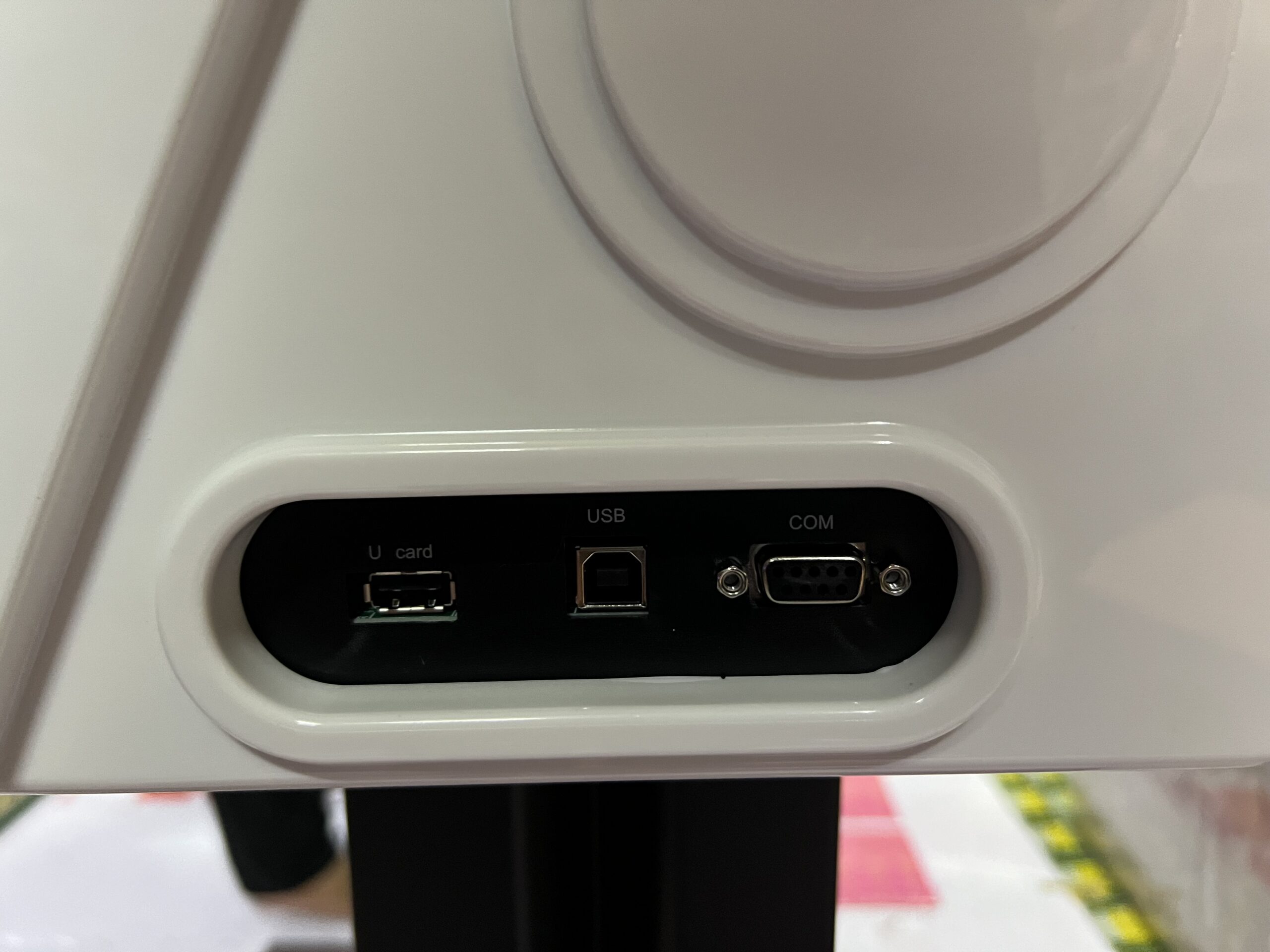

Interfaces: USB, U-Disk, Serial Port, WiFi/Bluetooth (optional)
Power: <80W, 220V/110V compatible
Weight: 37kg (gross)
✅ Special Features:
CCD Camera for precise contour cutting
Diamond reflective film cutting capability
Super silent operation (<60db)
Built-in repeat function for batch cutting
Compatible with CorelDraw, AutoCAD, MAC OS
__________________________________________
✅ Package Includes:
1× Teneth TN48CCD Plotter Machine
Stand
Power & USB cables
Imported blades (starter set)
Software drivers
✅ Warranty & Support:
1-Year Warranty
Training & after-sales support available
Spare parts ready in Malaysia 🇲🇾
______________________________________________
📄 BM
🖨️ Mesin Plotter Teneth TN48CCD – 48 Inci dengan CCD Camera
Mesin potong profesional untuk stiker, signboard, dan cetakan besar.
✅ Spesifikasi Utama:
Lebar potong: 1250mm (48 inci)
Lebar kertas maksimum: 1360mm
Kelajuan: hingga 1000mm/s
Tekanan potong: 10–1000g (boleh laras digital)
Ketepatan: 0.025mm
Panel kawalan: Full touch screen
Motor berkuasa tinggi & pantas
Sokongan: USB, U-Disk, WiFi/Bluetooth (opsyenal)
Berat kasar: 37kg
✅ Ciri-Ciri Khas:
CCD Camera untuk potongan tepat
Boleh potong reflektif film
Bunyi sangat senyap (<60db)
Fungsi repeat untuk kerja batch
Sokong CorelDraw, AutoCAD, MacOS
✅ Pakej Termasuk:
1× Mesin Plotter TN48CCD
Stand
Kabel kuasa & USB
Bilah (import)
Perisian & driver
✅ Jaminan & Servis:
Jaminan 1 Tahun
Latihan & servis selepas jualan
Spare part sedia ada di Malaysia 🇲🇾
👉 Stok sedia ada! PM/Chat untuk demo atau harga promosi 🔥
