Please contact us for the full brochure of this product and to confirm the exact Ruida controller version.

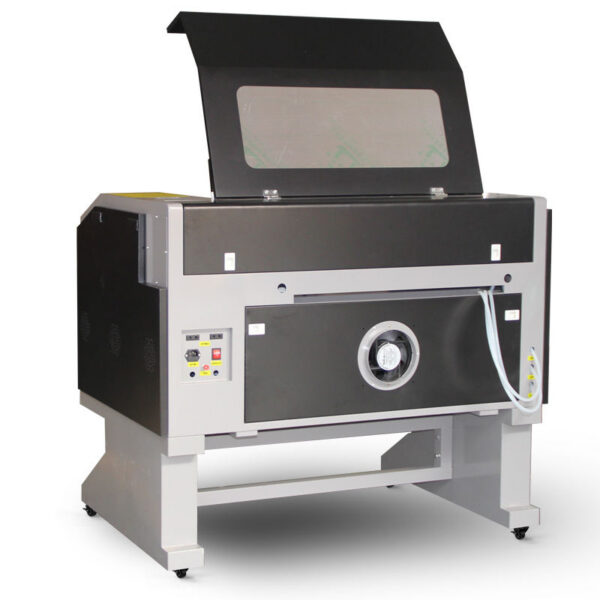

The mid-range series is upgraded from a circular guide rail to an aluminum triple linear guide rail, delivering greater stability and precision.
Equipped with a Ruida control system, the machine can operate independently through the onboard controller with no computer required.
For added convenience, Wi-Fi connectivity can also be enabled. Certain Ruida controllers support Wi-Fi, Ethernet, and even mobile app control, allowing you to operate, cut, and engrave directly from your phone.
| Specification | Details |
|---|---|
| Machine Model | 6090 |
| Working Area | 600*900 mm |
| Laser Power | 60W / 80W / 100W / 130W / 150W (Different Models) |
| Engraving Speed | ≤ 500mm/s |
| Cutting Depth | 1-10mm (Different Models Different Power Different Materials) |
| Compatible Software | RUIDA ( Provided ) / LIGHTBURN (Optional) |
| Cooling System | Water Cooling (Water pump included, Industrial chiller optional) |
| Supported Format | All Vector Files |
| Operating System | RUIDA System |
| Guide Rail Size | Triple Linear Guide Rail of 12mm |
| Reflection Mirror | 20mm Reflection Mirror |
| Laser Head | 18mm Focus Lens Laser Head |
